Highest capacity, most technologically advanced winch for big trucks
The Series 15-S winch is equipped with Warn Spydura ProMax synthetic rope and a drum and fairlead designed specifically for synthetic winch rope. Spydura ProMax synthetic rope features improved strength and ease of handling over conventional wire rope as well as full length rope cover for improved abrasion and UV resistance. The winch also features a weatherproof industrial contactor and heavy duty remote control. The disc brake is designed to hold full rated load and the motor is protected by a thermal over-load switch. Designed to meet CE standards. Remote Control Assembly, Synthetic Rope, and Hawse Fairlead included.
Features A Weatherproof Industrial Contactor And Heavy Duty Remote Control
- 1/2" x 70' Rope
- Improved Strength And Ease Of Handling Over Conventional Wire Rope As Well As Full Length Rope Cover For Improved Abrasion And UV Resistance
- Limited Lifetime Warranty for Mechanical Components
- Limited Five (5) Year Warranty for Electrical Components

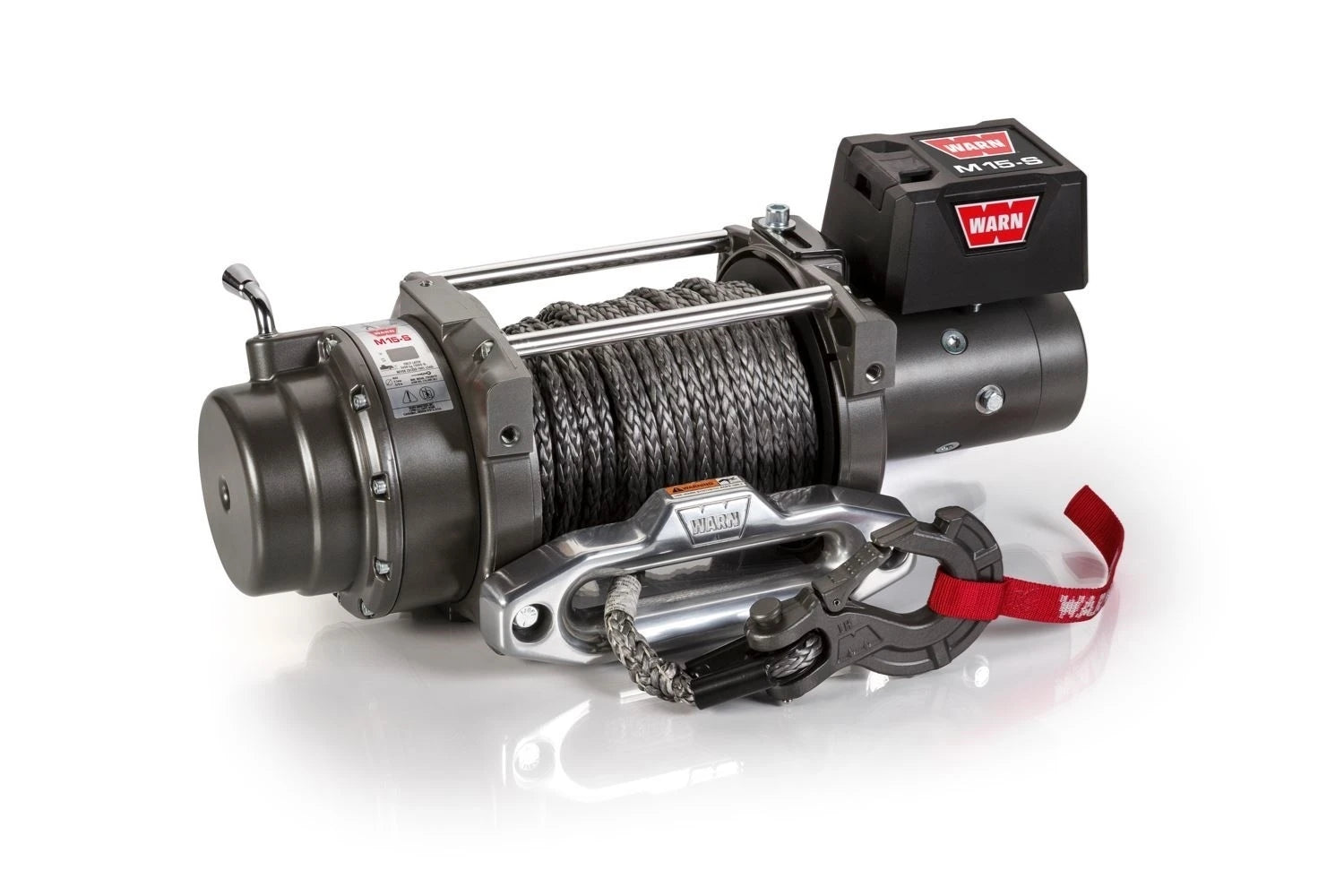

WARN M15-S 12V WINCH
Part number: | M15000-S-97730 |
Dust & water rating: | Water Resistant |
Fairlead: | Hawse |
Rated line Pull: | 15000lb (6804 kgs) single line |
Wireless Control: | Yes |
Motor: | 12V 4.6 hp, Gen II, Series Wound |
Recommended battery: | 650CA minimum for winching |
Control: | Pendant 12' (3.7M) lead |
Battery leads: | #2 gauge, 72" (1.83M) |
Gear train: | 3 Stage Planetary |
Gear ratio: | 315:1 |
Finish: | Powder coated |
Weight: | 102lb (46kgs) |
Clutch: | Rotating ring gear |
Bolt pattern: | 10"x 4.5" (254mm x 114.3mm) |
Brake: | Automatic mechanical cone |

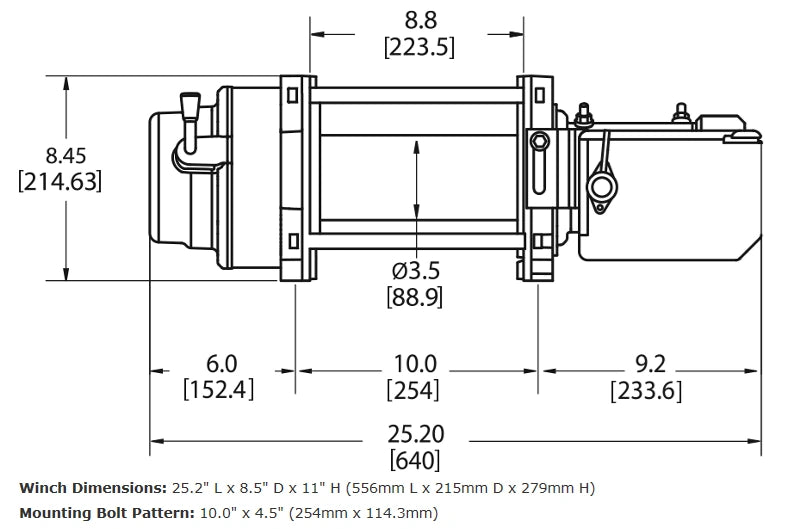

Overall dimensions (LxWxH): | 24.08" x 8.5"x 10.53" (612m x 216mm x267mm) |
Drum size: | 3.5"x 8.2" (90mm x 210mm) |
Cable type: | Synthetic Rope |
Cable: | 9.5mm x 24.3M |
