BDS Suspension

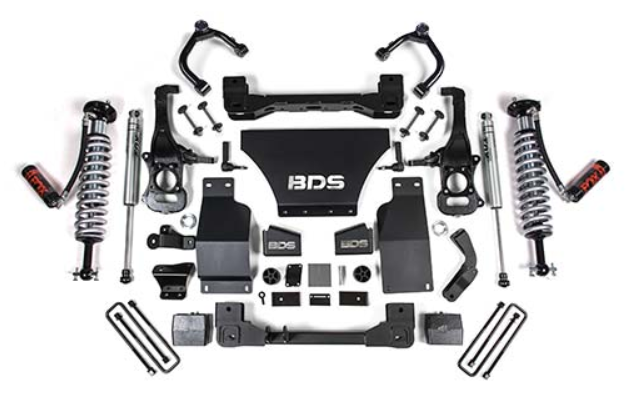

BDS 4" Fox Coilover Lift Kit w/DSC (Chevy Silverado 1500 2019-2021)

BDS 4" Fox Coilover Lift Kit w/DSC (Chevy Silverado 1500 2019-2021)

Regular price $9,999.00 AUD
Regular price Sale price $9,999.00 AUD
Sale Sold out
Tax included.

High Clearance Coilover Systems for Chevy/GMC 1500 trucks featuring FOX Performance Elite shocks
*This kit is sold for offroad use only. Please check your local and state laws before use.

These PE coilover systems join the current lineup offering improved performance and capability. These kits are based around the tried and true high clearance technology that has made BDS the go to for GM suspension lifts, designed from the ground up to get the more out of your truck with the most ground clearance on the market. While some companies build "kits" to fit larger tires, BDS Suspension prides itself in engineering complete suspension systems designed to take your vehicle's performance to the next level while retaining OE-level functionality. Case in point the (NHTSA) National Highway Traffic Safety Administration's FMVSS No.126 compliance standards requiring any aftermarket modification to not adversely effect the vehicle's electronic stability control (ESC) system performance in the event of an evasive maneuver.

At the heart of these systems are a pair of precision tuned FOX 2.5 performance elite series coilovers engineered to outperform on and offroad as they soak up the terrain. These coilovers are preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless aluminum body for better heat dispersion, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remove reservoirs optional DSC (dual speed compression) adjustment technology built in. DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail. A pair of reservoir mounting brackets are supplied to position the reservoirs. Complimenting the coilovers, BDS utilizes a pair of specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the 3-piece heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS's multipoint relocation bracket system tying into the frame and control arm pockets to further secure the front differential to keep CV axle angles at a minimum. A billet aluminum front driveshaft spacer is also supplied along with longer hardware to allow the reinstallation of the factory driveshaft. A pair of BDS-branded sway bar drop brackets used to correct the operating angle of the factory sway bar as well as created a strong brace between the rear crossmember and the frame. Rounding out the front of this kit are new lower control arm cam bolts to allow alignment and a weld-in frame reinforcement plate for extra strength.

In the rear of this performance lift kit, the factory block is replaced with a tall lift block and longer u-bolts to lift and level the stance. Also included, BDS supplies brake line and ABS line brackets allow the use of factory brake lines. Rear damper capacity is improved by your choice of specially tuned FOX 2.0 IFP Performance Series gas shocks or upgrade to the FOX 2.5 Performance Elite Series shocks with remote DSC reservoir to match the front performance. All kits come finished in a durable textured black powder coat and sent with all hardware packs to complete the install along with step-by-step installation instructions.

Tire & Wheel Combinations
35x12.50 w/20x9 and 5.5-6.25" back spacing
33x12.50 w/20x9 and 4.5-6.25" back spacing
*Trimming may be required*

Est. Installation: 8 hours
Difficulty Level (easy 1 - 5 complicated): 4

Kit Components
Qty Part# Description
1x 011316 2019-2022 Chevy/GMC 1500 Rear Box Kit -
1x 021664 2019-2022 Chevy/GMC 1500 Knuckle Box 1of
1x 021665 2019-2022 Chevy/GMC 1500 Knuckle Box 2of
1x 021682 2019-2022 Chevy/GMC 1500 6in Front Box K
1x 021683 2019-2022 GM 1500 6in Front Box Kit 2of2
1x 121633 2019-2022 Chevy/GMC 1500 Coilover Reserv
2x 98224758 Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
1x 88306159 Kit: BDS 19-20 Chevy 1500 Front Coilover

Important Kit Notes

  • Requires frame bracket modification
  • Will not fit models with Adaptive Ride Control (ARC)
  • Actual ride height with coilovers is closer to 4.5" of lift (748F/748FDSC only)
  • Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
  • 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
  • All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
  • This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.

*This kit is sold for offroad use only. Please check youe local and state laws before use.
