BDS 6" Radius Arm Lift Kit (F-250, F-350 2020-2022)

BDS 6" Radius Arm Lift Kit (F-250, F-350 2020-2022)

Regular price $6,999.00 AUD
Regular price Sale price $6,999.00 AUD
Sale Sold out
Tax included.

BDS raises the bar with 6" radius arm systems for the late model Super Duty.
These 6" systems upgrade the factory stamped steel radius arms to high strength tubular radius arms allowing for caster control and superior strength.

Full length 4" ProRide diesel only specific coil springs are used for the additional ride height paired with your choice of BDS NX2 series gas shocks or FOX 2.0 IFP performance gas shocks for a smooth ride on any terrain. A forged drop pitman arm and heavy duty track bar relocation bracket are supplied to correct steering angles and recenter the front axle. Also supplied for the front are bump stop extensions to limit suspension compression, sway bar drop brackets to correct the sway bar positioning, and brake line relocation brackets. At 6" of lift driveline adjustments are necessary so a precision built transfer case indexing ring is supplied to improve front driveline operating angle. Additionally a high clearance transmission crossmember is supplied. In the rear of these 6" lift systems BDS offers the your choice of replacement rear lift blocks or replacement GlideRide leaf springs. Either option will level out the stance, the spring replacement has the added benefits of an integrated overload leaf for additional load capacity. Additionally high strength black e-coated u-bolts are supplied along with a pair of matching NX2 or FOX 2.0 gas shocks to compliment the front setup for all around impressive performance. Take your Super Duty to the next level with BDS Suspension.

Tire & Wheel Combinations
38x13.50 w/17x9/18x9/20x9 and 4.5-5" back spacing
38x13.50 w/17x10/18x10 and 5" back spacing
38x13.50 w/20x10 and 5" back spacing
*Trimming may be required*

Est. Installation: 6-8 hours
Difficulty Level (easy 1 - 5 complicated): 4

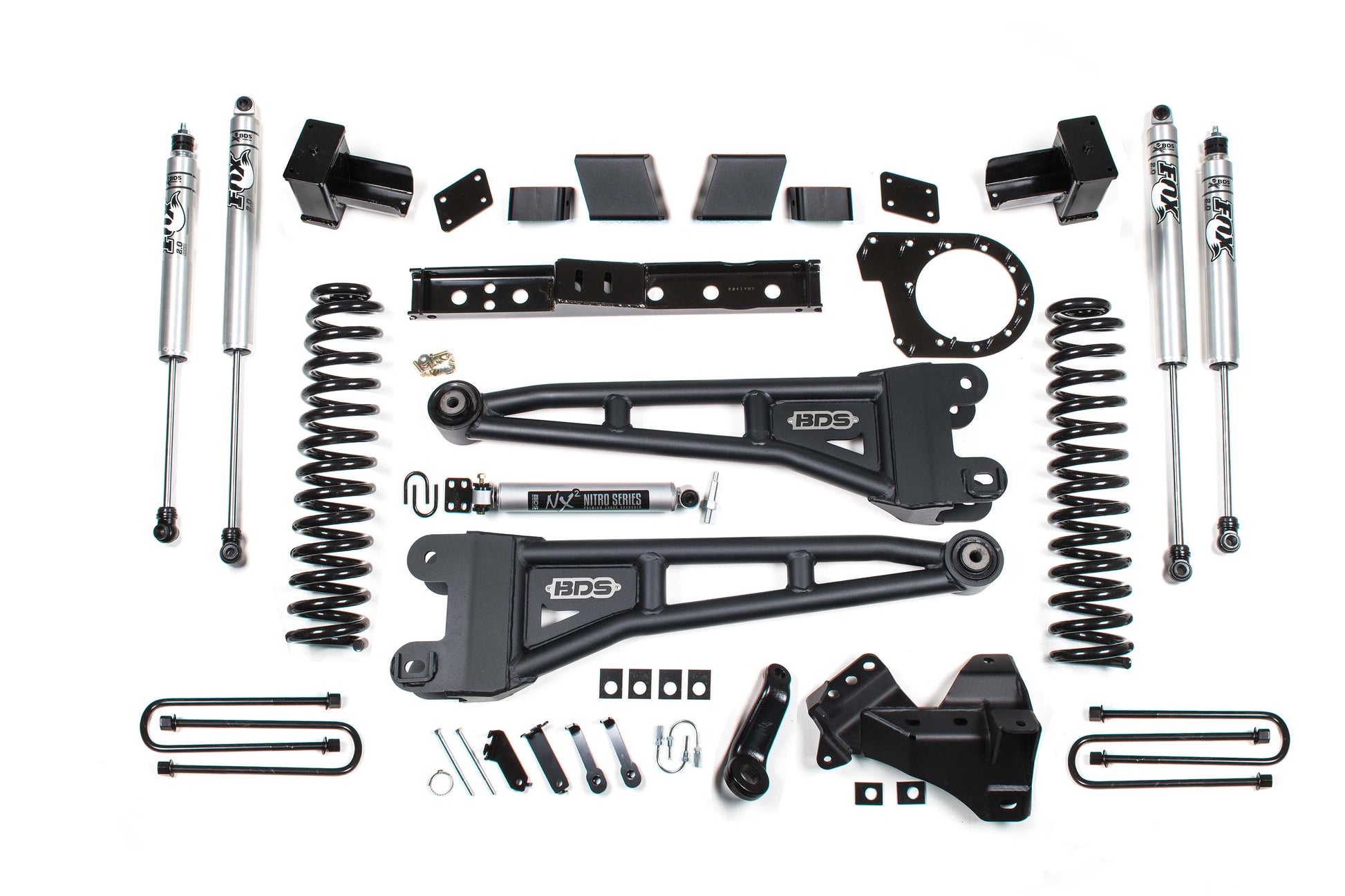

Kit Components
Qty Part# Description
1x 013603 2020-2022 F250/F350 6in RA Front Box Sus
1x 013606 2020-2022 F250/F350 6.25in Rear Box Susp
1x 033611 05-up Superduty 6 In Diesel Coils
1x 123251 Radius Arm Box Kit
1x 123605 2017-2022 SD T-Case Indexing Kit- DSL
1x 85431 NX2 Single Stabilizer (BDS Only)
2x 98224750 Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
2x 98224718 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
1x 123203 Adjustable Front Track Bar
1x 55380 2017-2020 Ford Super Duty - Dual Steerin
2x 98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1

Important Kit Notes
1. Fits Diesel models only.
2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a factory rear sway bar add: BDS123808
5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
6. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
7. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section.
8. The indexing ring is only compatible with 10 speed transmission trucks. Please verify your truck's equipment before installing. Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
9. Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
10. Installation requires a torque wrench capable of 405 ft-lbs.
11. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
12. Due to factory ride heights being lower on 2020 and newer model year trucks, the net lift you will gain with this kit will be 1" more than advertised. (EX. 4" kit will net 5" of lift)
