BDS Suspension

BDS 5" Radius Arm Lift Kit (F-250, F-350 2023-on)

BDS 5" Radius Arm Lift Kit (F-250, F-350 2023-on)

Regular price $6,799.00 AUD
Regular price Sale price $6,799.00 AUD
Sale Sold out
Tax included.

Built to take full advantage of the factory suspension design, these 5" radius arm systems correct suspension, steering and driveline geometry with room for 37" tires.

 At the heart of this system is a pair of heavy-duty radius arms built to withstand whatever abuse you can throw at them. Built from 1-3/4" OD tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. They use a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. They incorporate factory style 3-1/4" rubber bushings to minimize road vibrations and allow for a long, maintenance-free bushing life. The arms bolt into the factory mounting points and reposition the front axle to correct caster angle. The additional 5" of lift comes from a pair of diesel or gas specific coil springs. These paired with your choice of BDS NX2 series gas shocks or the precision tuned FOX 2.0 performance gas shocks offer a smooth ride and improved control over rough terrain. To improve steering angles a forged drop pitman arm is supplied with an integrated drag link flip. Used in combination with the 1/4" thick heavy duty track bar drop bracket will position the front axle and keep the track bar angle in phase with the steering for improved handling. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket.

 Out back a you have the option of a 3" fabricated block with integrated bump stop wing is used in place of the factory block to level the stance or upgrade to replacement rear leaf springs. These springs integrate an overload leaf for increased load capacity while offering smooth on-road ride quality. Longer black e-coated u-bolts and your choice of NX2 or FOX 2.0 shocks round out this 5" radius arm lift system.

    • Tire & Wheel Combinations
    • 37" x 12.50 w/17 x 9 and 4.5-5" back spacing
    • 37" x 12.50 w/18 x 9 and 4.5-5" back spacing
    • 37" x 12.50 w/20 x 9 and back spacing

*Trimming may be required*

  • Est. Installation: 6-8 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

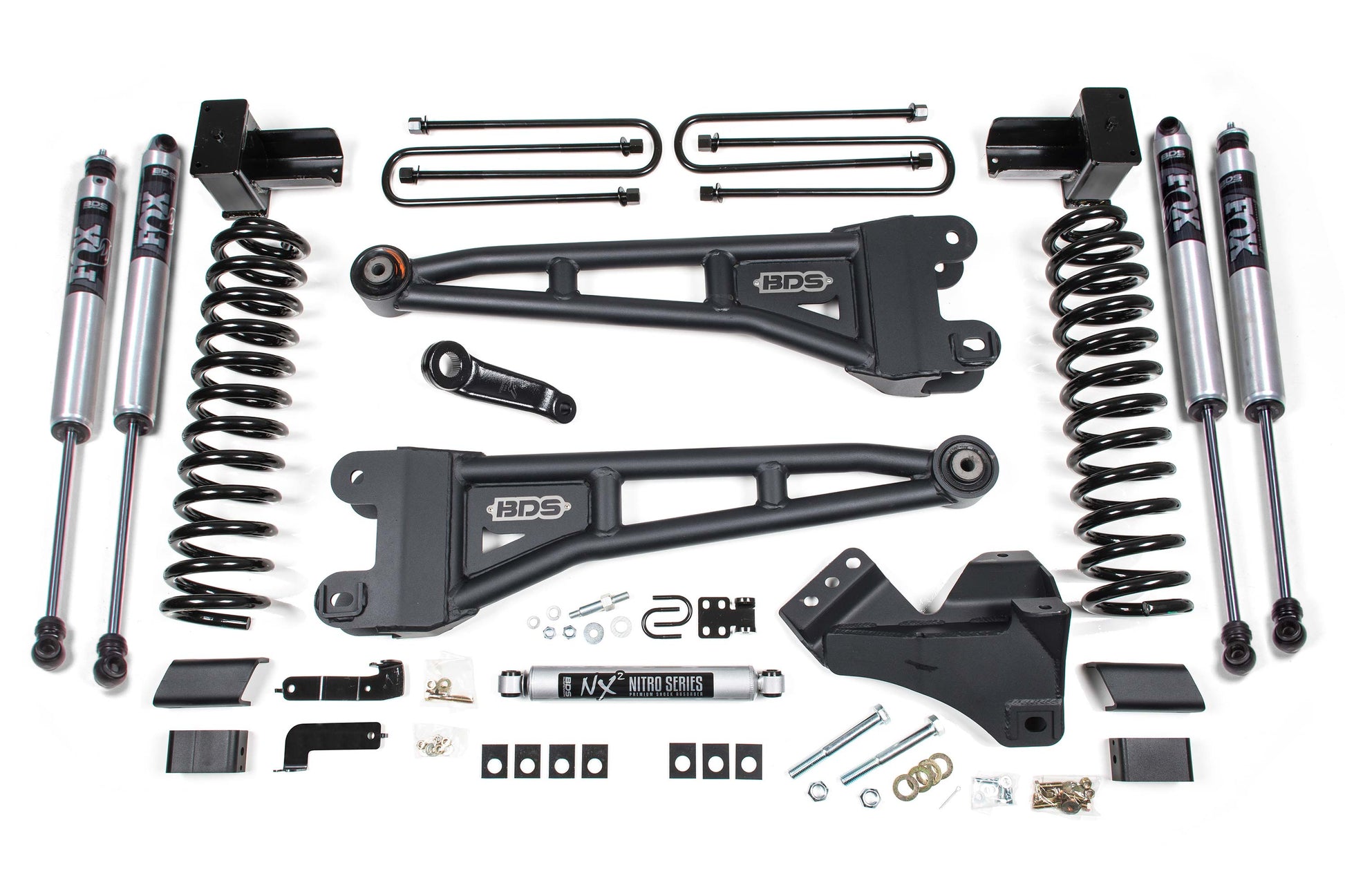

Kit Components
Qty Part# Description
1x 013414 Front Box Kit
1x 013516 2017 F250 5" Rear Block Kit -3 Leaf Main
1x 033411 Coil Spring Box Kit (Diesel)
1x 123263 2023 Ford F250/350 4wd Radius Arm Kit, P
2x 98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2x 98224718 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
1x 55380 2017-2020 Ford Super Duty - Dual Steerin
2x 98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1
1x 123203 Adjustable Front Track Bar
1x 123402 Driveshaft Alignment Kit

Important Kit Notes
1. Ford recommends replacement of the pitman arm nut after each time it has been removed.
2. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
3. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
4. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
5. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
6. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
7. Installation requires a torque wrench capable of 406 ft-lbs.
8. Trucks without top mounted overload springs will require (4) UBT4028.
