BDS Suspension

BDS 4" Radius Arm Coilover Conversion Lift Kit (F-250, F-350 2011-2016)

BDS 4" Radius Arm Coilover Conversion Lift Kit (F-250, F-350 2011-2016)

Regular price $9,899.00 AUD
Regular price Sale price $9,899.00 AUD
Sale Sold out
Tax included.

DIESEL ONLY | BDS Radius Arm Coilover Lift Kits for Super Duty

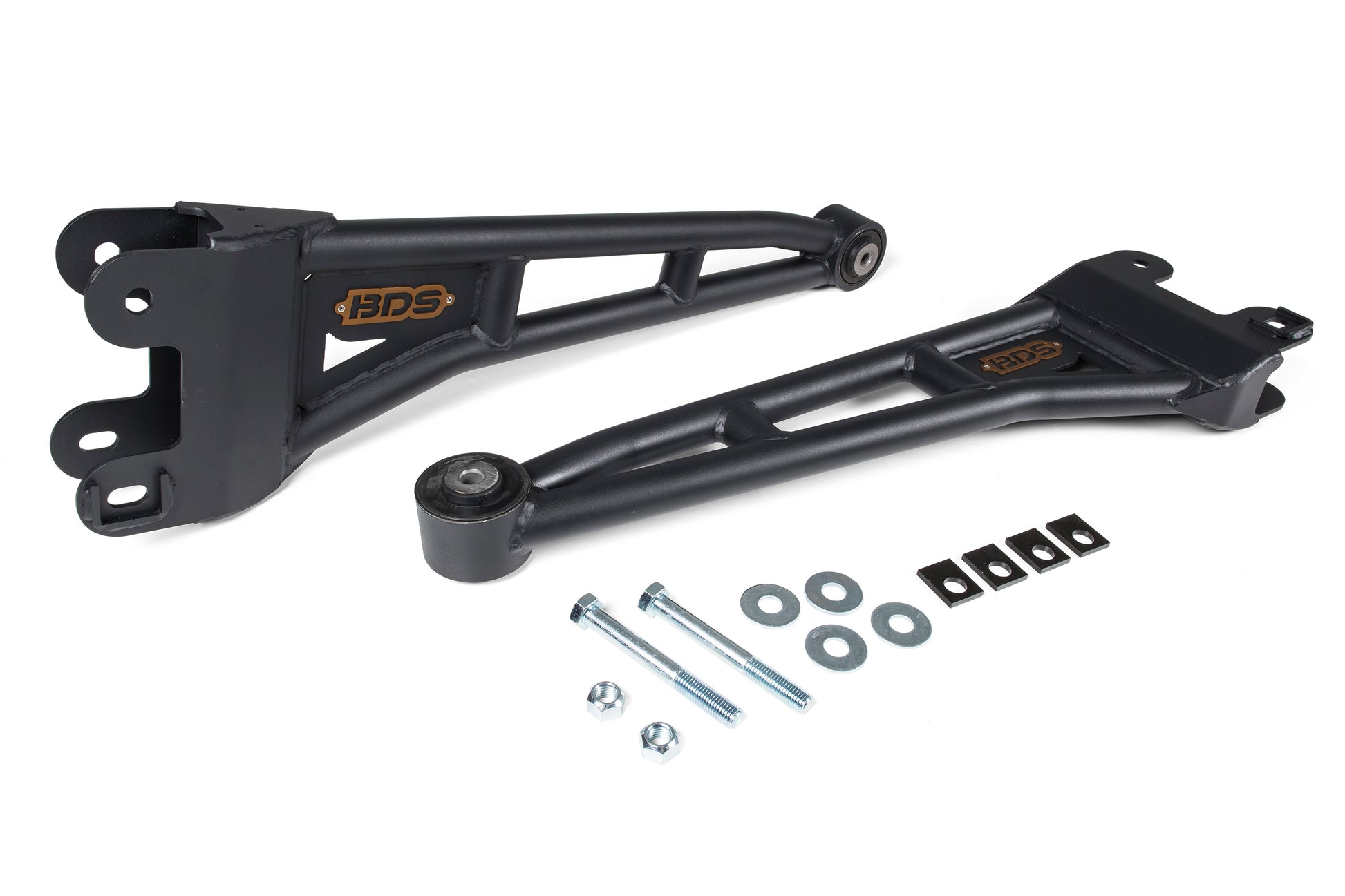

Built for next level performance these coilover conversion systems offer improved all around performance, capability and comfort. At the heart of these kits are a pair of heavy duty replacement radius arms built to withstand whatever abuse you can throw at them. Constructed from 1-3/4" OD -10GA DOM tubing with support gussets, these radius arms are far superior to the factory stamped steel units. They use a high clearance design for extra ground clearance and and additional clearance of oversized tires. They incorporate factory style 3-1/4" rubber bushings to minimize road vibrations and allow for a long, maintenance-free bushing life. The arms bolt into the factory mounting points and utilize a lower cam slot to be used with the provided cam locks to correctly position the fron axle and correct caster angle.

This system takes performance to the next level with FOX 2.5 Factory Series remote reservoir coilovers with DSC (dual speed compression). These bolt into place using the supplied mounting brackets and pair with a set of FOX 2.0 performance series gas shocks. To improve steering angles a forged drop pitman arm is supplied with an integrated drag link flip. Used in combination with the 1/4" thick heavy duty track bar drop bracket will position the front axle and keep the track bar angle in phase with the steering for improved handling. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a steering stabilizer mounting bracket.

In the rear, BDS supplies either a lift block and longer u-bolts to level the stance or replacement GlideRide leaf springs with integrated overload leaf for great all around capabilty and limit any potential axle wrap. Also included are rear u-bolts, rear brake line relocation bracket and FOX 2.0 performance series gas shocks. As with all kits these include all hardware and step-by-step instructions to complete the install.

Take your Super Duty to the next level with BDS Suspension.

Tire & Wheel Combinations
35x12.50 w/20x9 and 4.5" back spacing
35x12.50 w/18x9 and 4.5" back spacing
*Trimming may be required*

Est. Installation: 8 hours
Difficulty Level (easy 1 - 5 complicated): 3

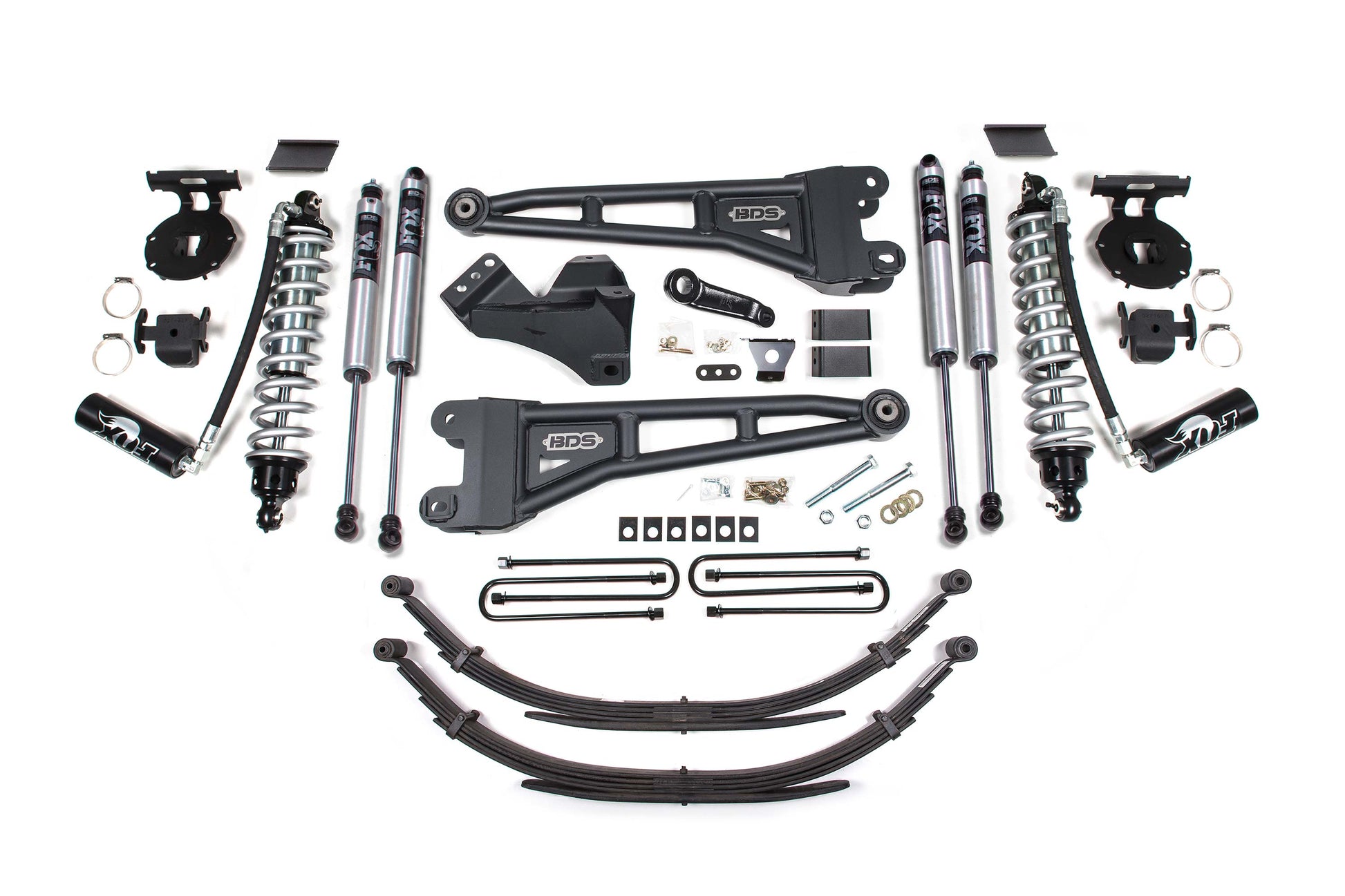

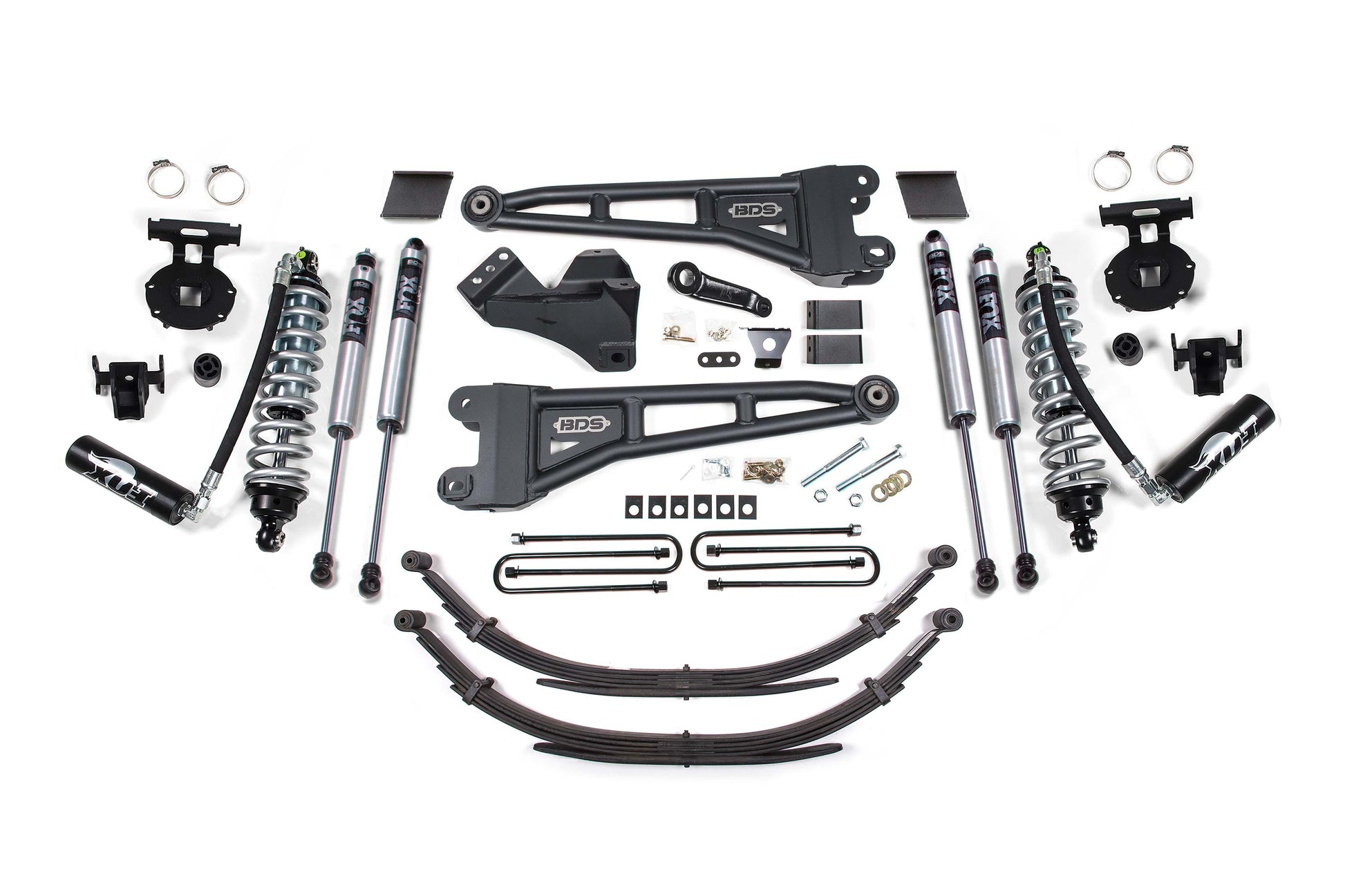

Kit Components
Qty Part# Description
1x 013424 2011-2016 Ford F250/F350 4" Radius Arm F
1x 013519 05-up F250/350 5in Rear W/o Ovld
1x 123212 2005-2016 Ford F250/F350 Super Duty Coil
1x 123251 Radius Arm Box Kit
1x 88406149 X - Kit: BDS 05-20 Ford F250/F350 Front
2x 98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2x 98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
1x 55380 2017-2023 Ford Super Duty - Dual Steerin
2x 98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1
1x 123402 Driveshaft Alignment Kit
1x 123202 Adjustable Front Track Bar

Important Kit Notes
1. Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring equipped systems)
2. If equipped with 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.
3. Although extremely rare, front and/or rear driveline vibration may occur.
4. If equipped with rear sway bar, #123009 required.
5. U-bolts will not work on dually.
