BDS Suspension

BDS 4 Inch Lift Kit W/ Radius Arm | Ram 2500 (19-24) 4WD | Diesel

BDS 4 Inch Lift Kit W/ Radius Arm | Ram 2500 (19-24) 4WD | Diesel

Regular price $7,991.00 USD
Regular price Sale price $7,991.00 USD
Sale Sold out
Tax included.

Take your RAM 2500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Shock Option

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
FOX 2.0 ATS Steering Stabilizer | Factory Race | Ram 2500 (14-24) & 3500 (13-24)
  • Adjustable Through Shaft (ATS) design cancels unwanted steering forces in both directions
  • Takes the place of two conventional opposing stabilizers.
  • 24 clicks of adjustability for fine tuning.
  • Relocates stabilizer higher and out of the way from damage.
  • Direct replacement for stock and aftermarket lifts kits.
Front Adjustable Track Bar | Ram 2500 (14-24) and 3500 (13-23) 4WD
  • Heavy-duty 1-3/8" solid stock steel construction
  • Center pinch-bolt style turnbuckle adjustment
  • Allows front axle to be recentered at a wide range of lift heights
  • Specially formed to alleviate stress on mount points
  • Ready to install without need to clear factory frame/axle mounts

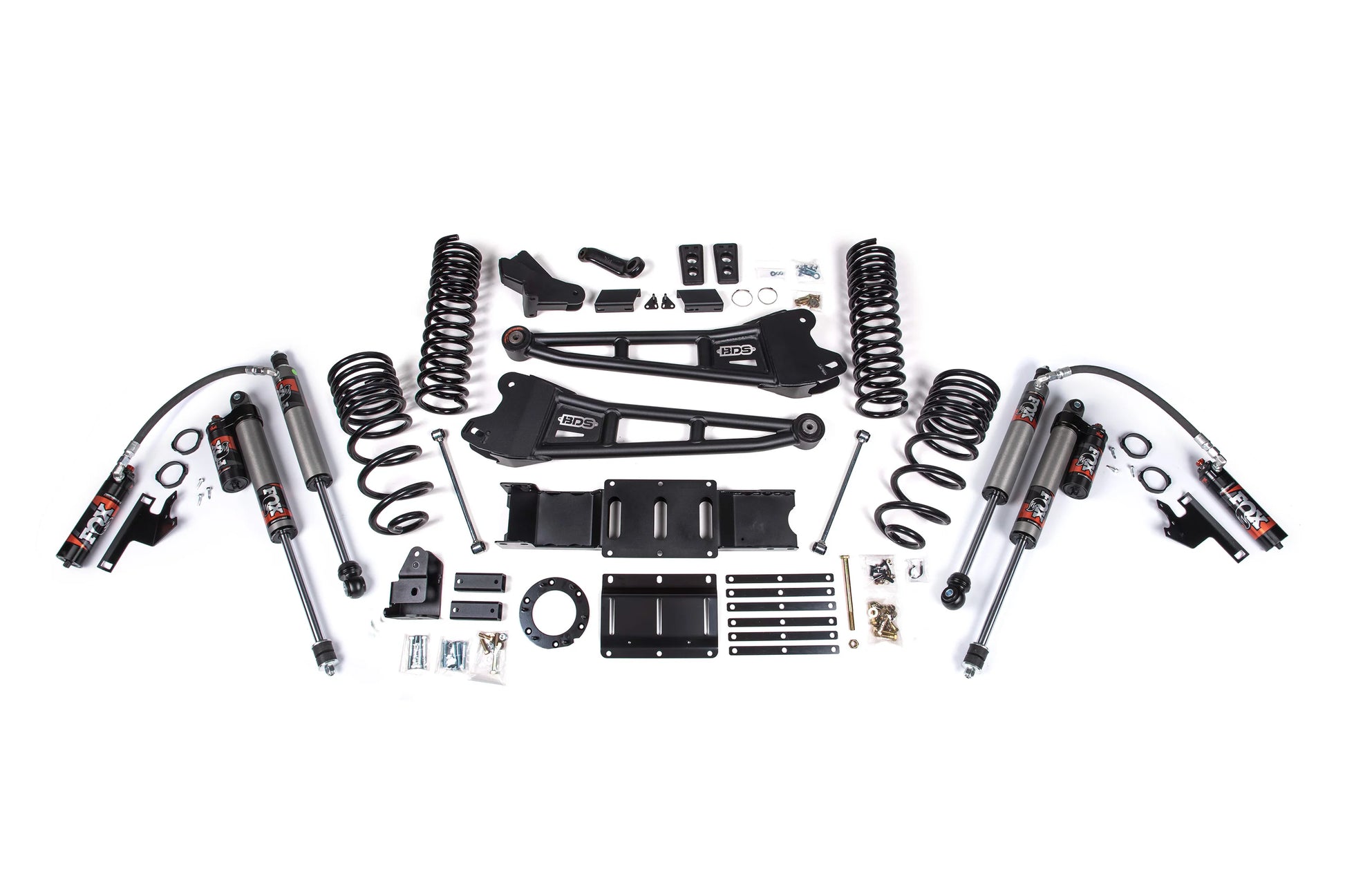

KIT COMPONENT LIST
1x BDS012269 2019-2024 Ram 2500 2.5" Rear Coil Box Kit
1x BDS012431 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4" Front Box Kit
1x BDS122321 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit
1x BDS032491 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4" Diesel/5.5" Gas
1x BDS122624 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel
1x FOX88326064 Kit: 2014-2024 Ram 2500, Front, 2.5 Truck PES, R/R, 6" Lift, DSC
1x FOX88326066 Kit: 2014-2023 Ram 2500, Rear, 2.5 Truck PES, P/B, 10.6", 2-3.5" Lift, DSC
1x FOX98302158 FOX 2.0 ATS Steering Stabilizer | Factory Race | Ram 2500 (14-24) & 3500 (13-24)
1x BDS122324 Front Adjustable Track Bar | Ram 2500 (14-24) and 3500 (13-23) 4WD
