BDS Suspension

BDS 4.5 Inch Lift Kit | Chevy Silverado Or GMC Sierra 2500HD/3500HD (11-19) BDS1819FS

BDS 4.5 Inch Lift Kit | Chevy Silverado Or GMC Sierra 2500HD/3500HD (11-19) BDS1819FS

Regular price $5,999.00 AUD
Regular price Sale price $5,999.00 AUD
Sale Sold out
Tax included.

Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 4.5-inch lift kit. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

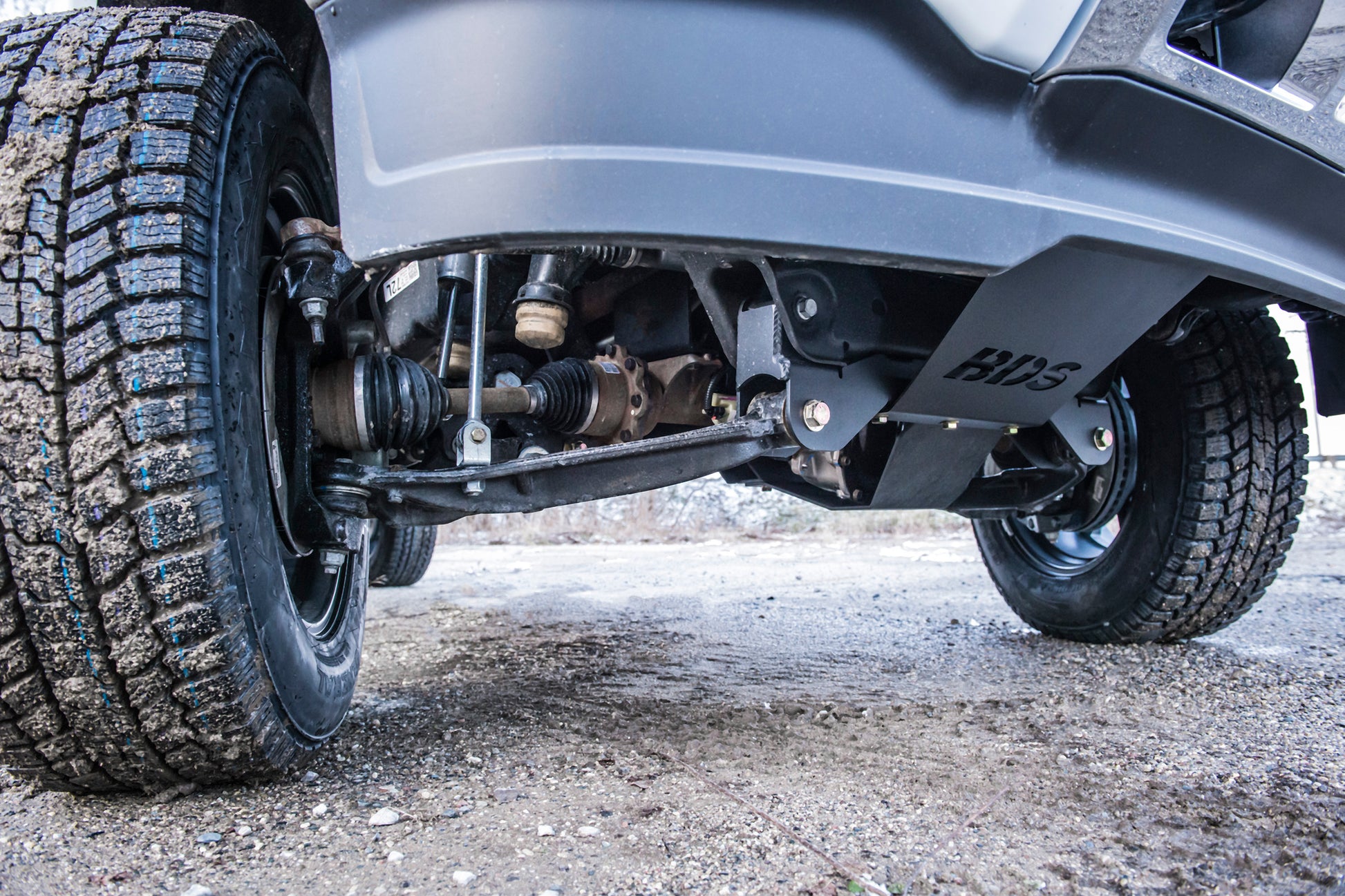

High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

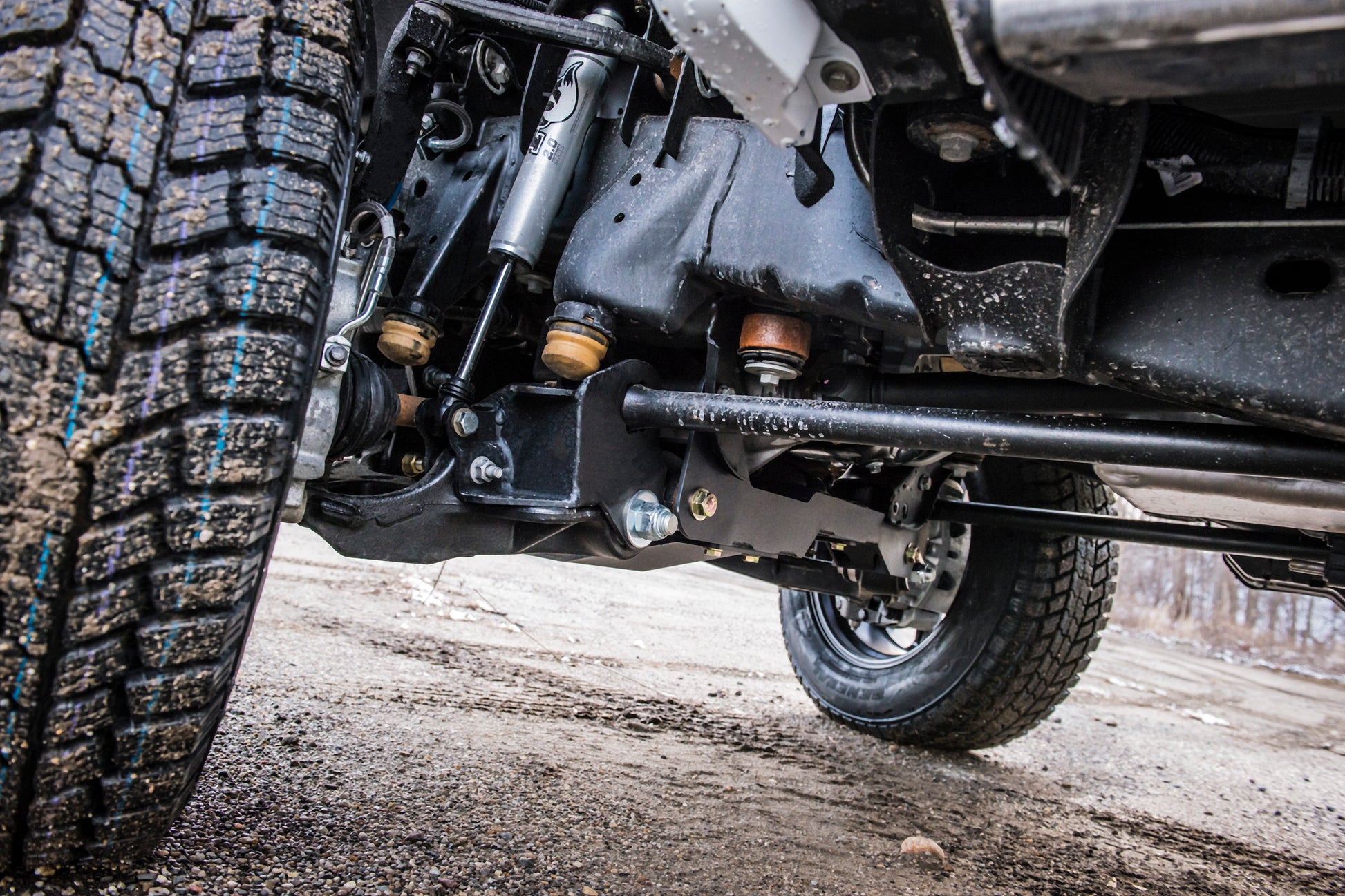

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Features & Benefits

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX 2.0 gas shocks for improved performance


Recommended Tires & Wheels
35 x 12.5 with 17 x 8 and 4.625 in. Backspace
35 x 12.5 with 18 x 9 and 4.625 in. Backspace
35 x 12.5 with 20 x 9 and 6 in. Backspace

Rear Lift Option
Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

Shock Option

  • FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish


Important Notes:

  • Torsion Bar Tool required to load/unload the torsion bars.
  • Stock 17" & 18" wheels cannot be reinstalled.
  • Stock 20" wheels cannot be reinstalled on 2015-2019 models
  • Factory dually wheels cannot be reinstalled.
  • Models with two-piece rear driveshaft may require #121612.
  • Top mounted rear overload spring-equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
  • Depending on the specific wheel and tire combination trimming may be required for 35x12.50s

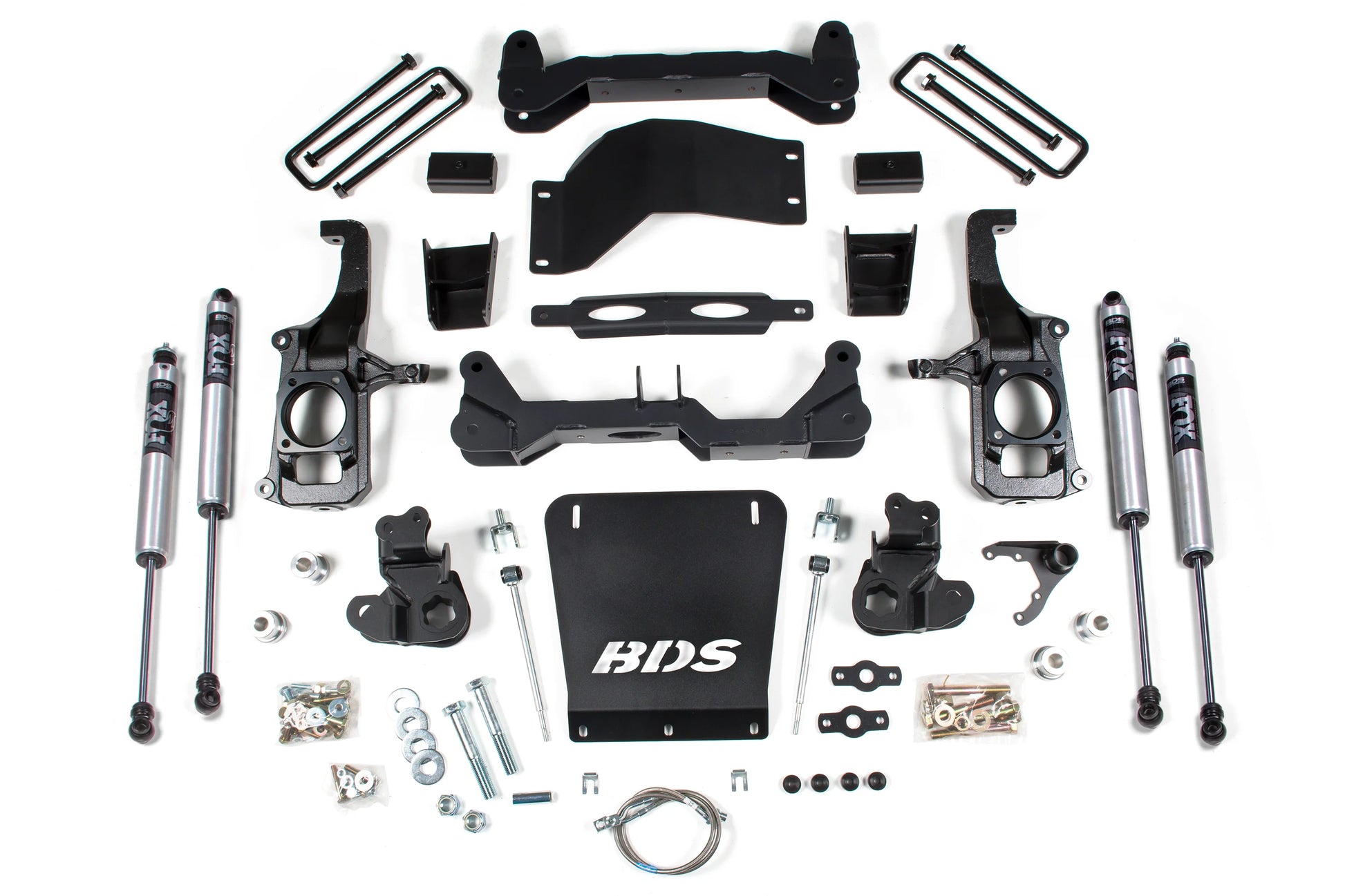

Kit Components
BDS1819FS 3 Inch Block Kit Without Overload / FOX 2.0 Performance Series
1x BDS021454 11-15 GM HD 4.5in Torsion Bar System
1x BDS021650 11 GM HD 4.5-6.5in System (1of4)
1x BDS021651 11 GM HD 4.5-6.5in System (2of4)
1x BDS021652 11 GM HD 4.5-6.5in System (3of4)
1x BDS021653 11 GM HD 4.5-6.5in System (4of4)
1x BDS121650 2001-2019 GM HD Front Skid Plate Box Kit
1x BDS011318 11 HD 3in Rear w/o Top Overload
2x FOX98224613 Fox 2.0 Shock 21.95 x 13.85 x 2- S50/EB1
2x FOX98224769 Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
