BDS Suspension

BDS 2" Performance Coilover Lift Kit (Chevy 1500 2019-2023)

BDS 2" Performance Coilover Lift Kit (Chevy 1500 2019-2023)

Regular price $6,799.00 AUD
Regular price Sale price $6,799.00 AUD
Sale Sold out
Tax included.

2" Performance Series Lift Kit

When its time to step your game up these 2" FOX coilover systems are ready to do battle. More that just a "leveling kit", this 2" system steps up to specially tuned FOX 2.5 Performance Elite Series coilovers featuring DSC (dual speed compression) adjustment.

These coilovers are backed by FOX's racing pedigree, preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remove reservoirs with mounting brackets. The DSC reservoir allows for easy tool-free adjustment of high-speed and low-speed compression adjustment settings to further dial in the damping to the terrain and ride preferences.

Also supplied for the front are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. In the rear of these lift systems the factory leaf springs are retained to result in a level stance in no change in tow/load capacity. You choice of FOX 2.0 Performance Series IFP shocks or FOX 2.5 Performance Elite Series shocks with DSC remote reservoir are avaialble to improve rear suspension performance.

    • Tire & Wheel Combinations
    • 295/70 w/17x9 and 5.5" back spacing
    • 295/65 w/18x9 and 5.5" back spacing
    • 295/60 w/20x9 and 5.5" back spacing

*Trimming may be required*

  • Est. Installation: 3-4 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

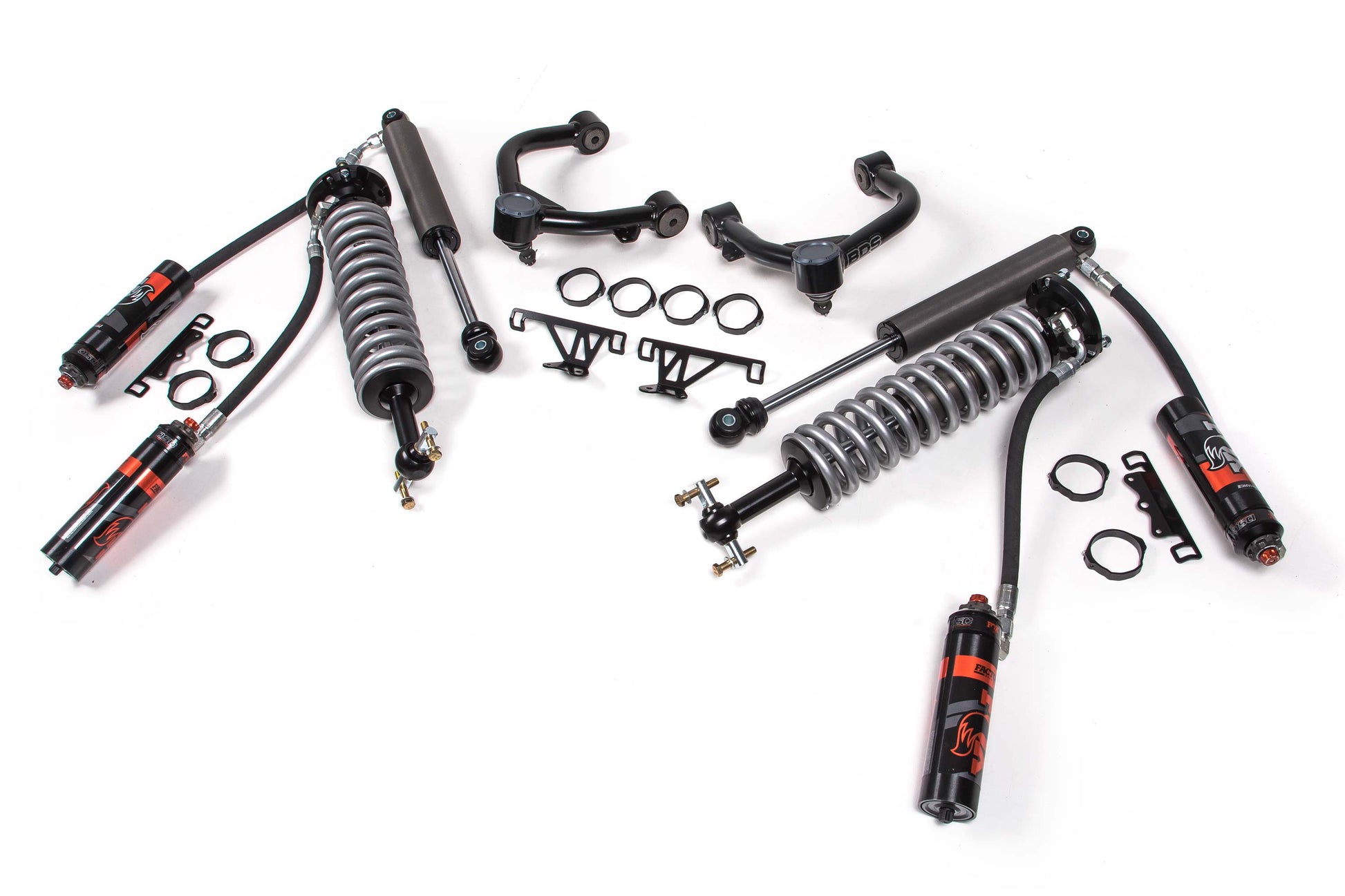

Kit Components

Qty Part# Description
1 121253 X - 2019-2023 GM 1500 Upper Control Arm
1 88306157 Kit: 19-ON GM 1500 Front Coilover, 2.5 S
1 88326060 Kit: 19-ON GM 1500, Rear, 2.5 Truck FRS,

Important Kit Notes

1. Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint when used on 2-3.5" kits
2. Will not fit Denali models equipped with ARC
3. Can be used on Trail Boss / AT4 models, but will net 0" lift
4. This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.
