BDS Suspension

BDS 2" IFP Coilover Lift Kit (Chevy 1500 2019-2022)

BDS 2" IFP Coilover Lift Kit (Chevy 1500 2019-2022)

Regular price $3,099.00 AUD
Regular price Sale price $3,099.00 AUD
Sale Sold out
Tax included.

These 2" FOX coilover systems are designed to build on the stout factory front suspension design on the Chevy/GMC 1500 trucks and take performance to the next level while leveling out the stance.

 More that just a "leveling kit", at the heart of this 2" system is a pair of specially tuned FOX 2.0 Performance Series IFP coilovers. These non-reservoir coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft all preloaded with coil springs ready for easy installation.

 Also supplied for the front are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. In the rear of these lift systems the factory leaf springs are retained to result in a level stance in no change in tow/load capacity. A pair of FOX 2.0 performance series IFP shocks are supplied to match the front performance.

    • Tire & Wheel Combinations
    • 295/70 w/17x9 and 5.5" back spacing
    • 295/65 w/18x9 and 5.5" back spacing
    • 295/60 w/20x9 and 5.5" back spacing

*Trimming may be required*

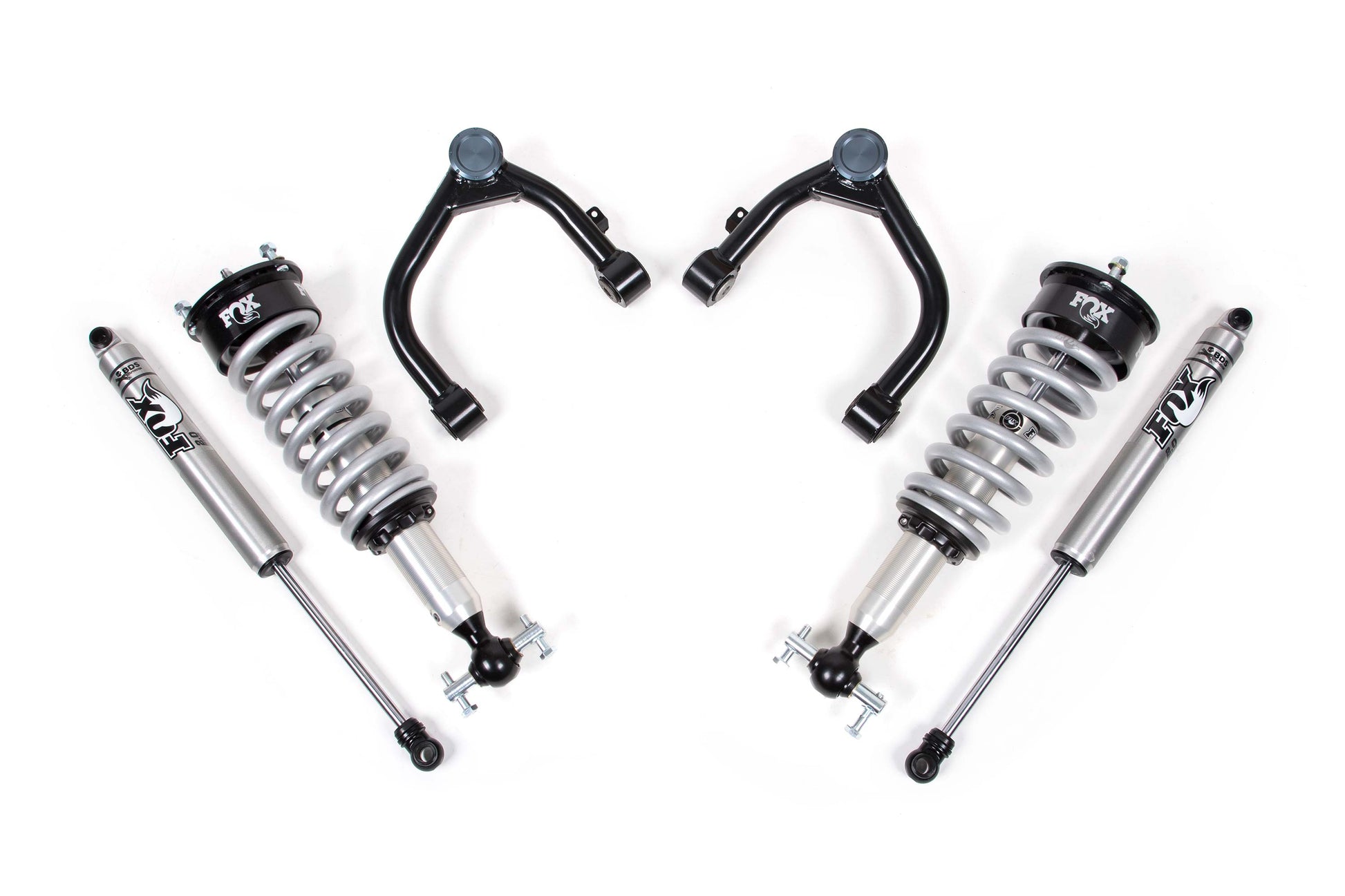

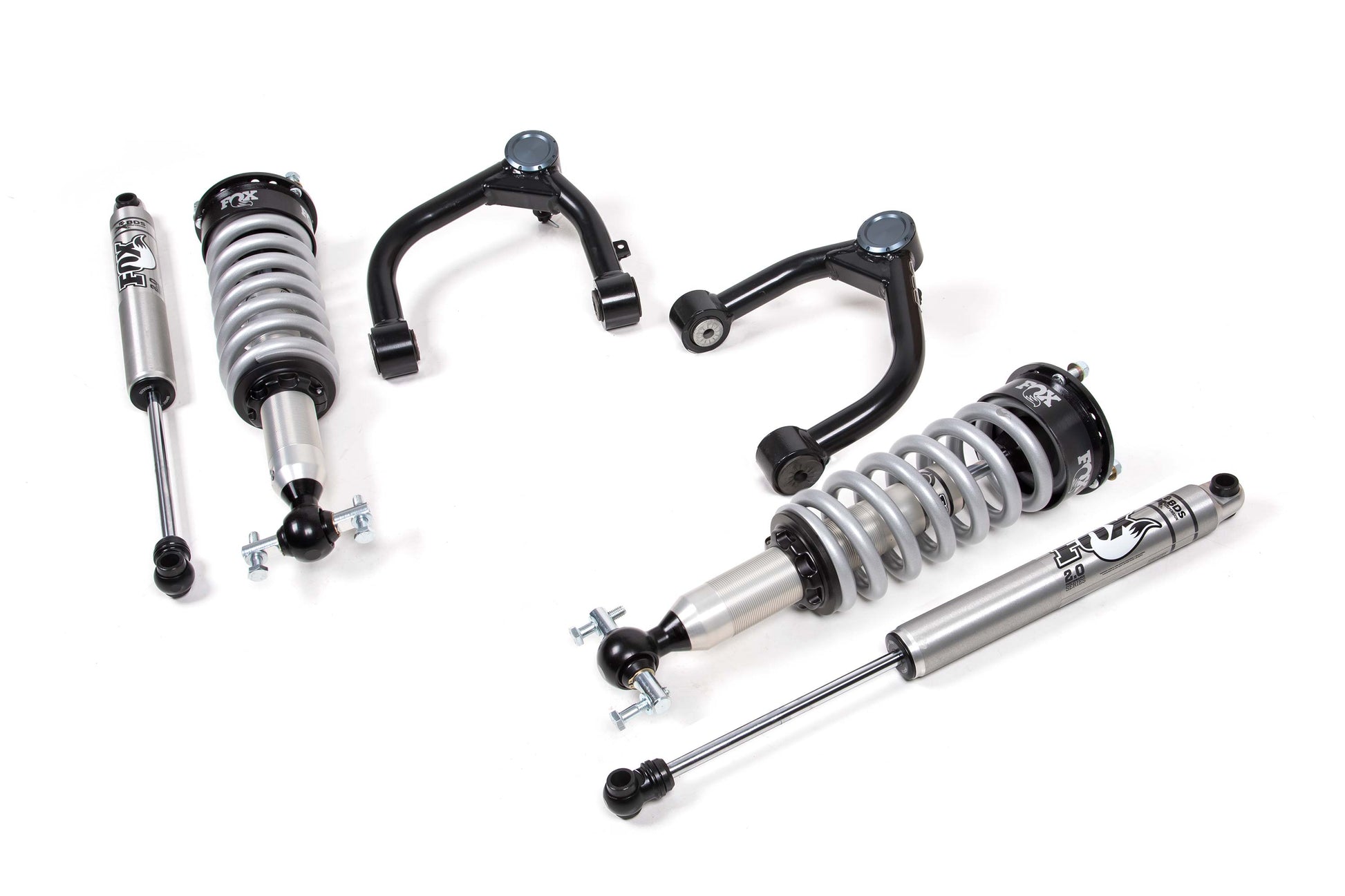

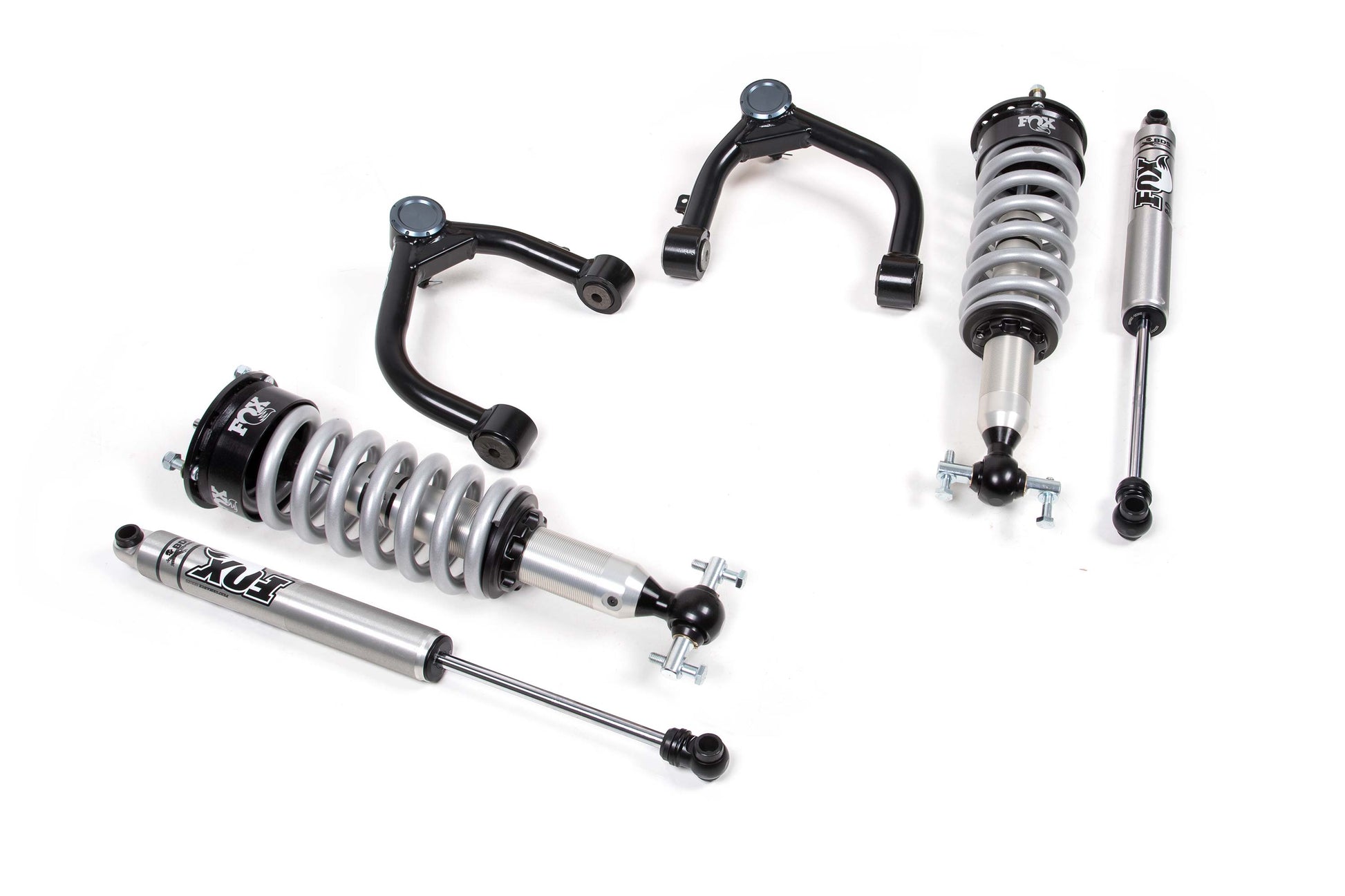

Kit Components
Qty Part# Description
1x 121253 X - 2019-2023 GM 1500 Upper Control Arm
2x 98224719 Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
2x 98502134 19-ON GM 1500 Front Coilover, PS, 2.0, I

Important Kit Notes
1. Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint when used on 2-3.5" kits
2. Will not fit Denali models equipped with ARC
3. Can be used on Trail Boss / AT4 models, but will net 0" lift
4. This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.
