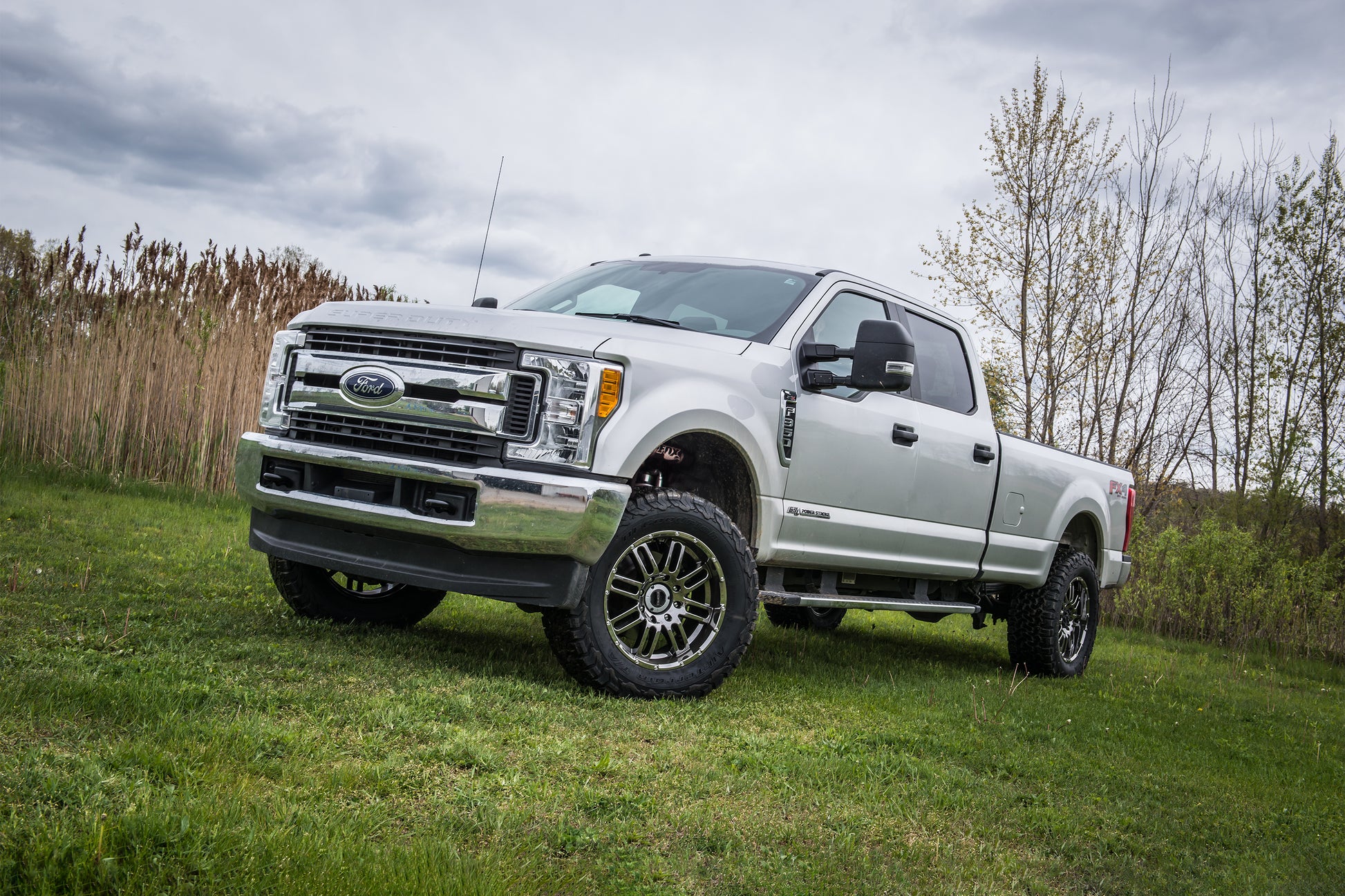

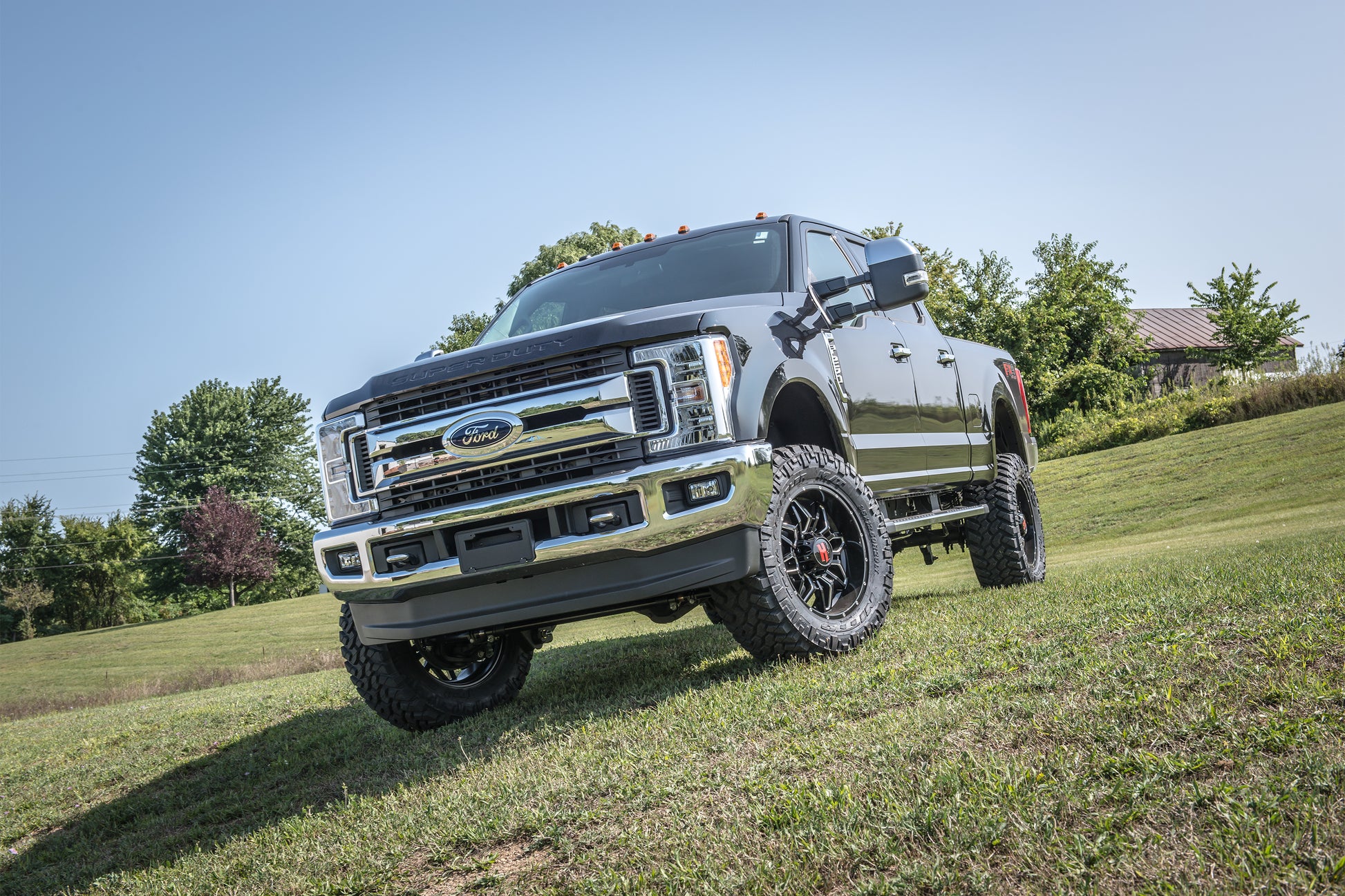

BDS 2.5" Radius Arm Coil-Over Performance Elite Lift Kit (F-250, F-350 2017-2019)

BDS 2.5" Radius Arm Coil-Over Performance Elite Lift Kit (F-250, F-350 2017-2019)

Regular price $8,499.00 AUD
Regular price Sale price $8,499.00 AUD
Sale Sold out
Tax included.
Next level performance for your Super Duty with this PE coilover radius arm lift kit.
These kits are designed to improve performance and capability offroad while retaining great on-road handling. This kit builds on the BDS radius arm design to convert the front springs over to FOX 2.5 Performance Elite (PE) coilovers. These aluminium bodied coilovers offer improved damper performance, better heat dispersion and easy tuning via the DSC (dual speed compression) adjusters located on the reservoir allowing you to dial in the high-speed and low-speed compression settings. These coilovers come pre-tuned and full assembled to easy installation with the provided bolt-on coilover mounting brackets.

The foundation for this kit is the tried-and-true BDS radius arm lift kit that utilizes high strength tubular gusseted radius arms to correction front axle positioning, add strength and increase ground clearance. The kit also includes a HD adjustable track bar to recentre the front axle, sway bar relocation brackets, bump stop extensions, rear block & u-bolt kit along with FOX 2.0 Performance Series shocks at each corner. BDS designs this kit as a complete solution to transform your Super Duty to tame the any terrain. As with all BDS kits, these include Factory Protection Plus offering you a 5yr/60k-mile drivetrain warranty and no fine print warranty on the kit itself. Take your Super Duty to the next level with BDS and FOX.

Tire & Wheel Combinations
35x12.50 w/17x9 and 5" back spacing
35x12.50 w/18x9 and 5" back spacing
35x12.50 w/20x9 and 5" back spacing
*Trimming may be required*

Est. Installation: 5 hours
Difficulty Level (easy 1 - 5 complicated): 3

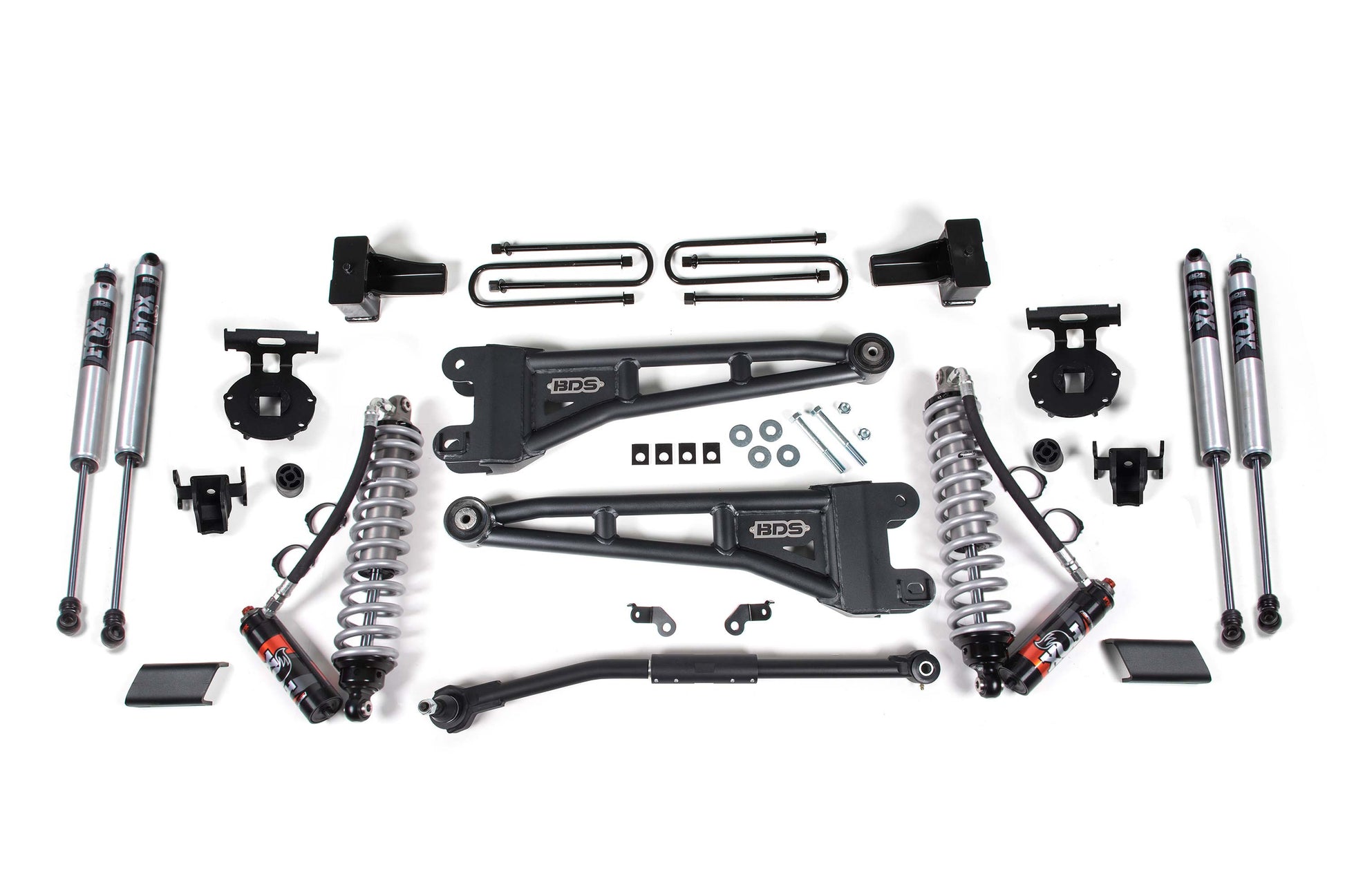

Kit Components
Qty Part# Description
1x 013262 2017-up F250/350 2.5in Front Box Kit
1x 013407 2017-up F250 4in Rear Block Kit
1x 123251 Radius Arm Box Kit
1x 123613 2017-2022 Super Duty Coil-over Mount Kit
1x 88406426 Kit: BDS 05-On Ford SD Front Coilover, 2
2x 98224710 Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
2x 98224718 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

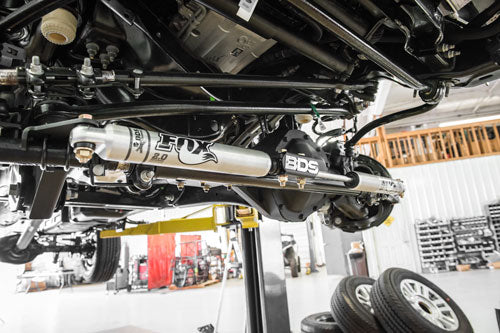

1x 55380 2017-2023 Ford Super Duty - Dual Steerin
2x 98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1

Important Kit Notes
  • Coilovers are designed for diesel applications only.
  • Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues.
  • Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec.
