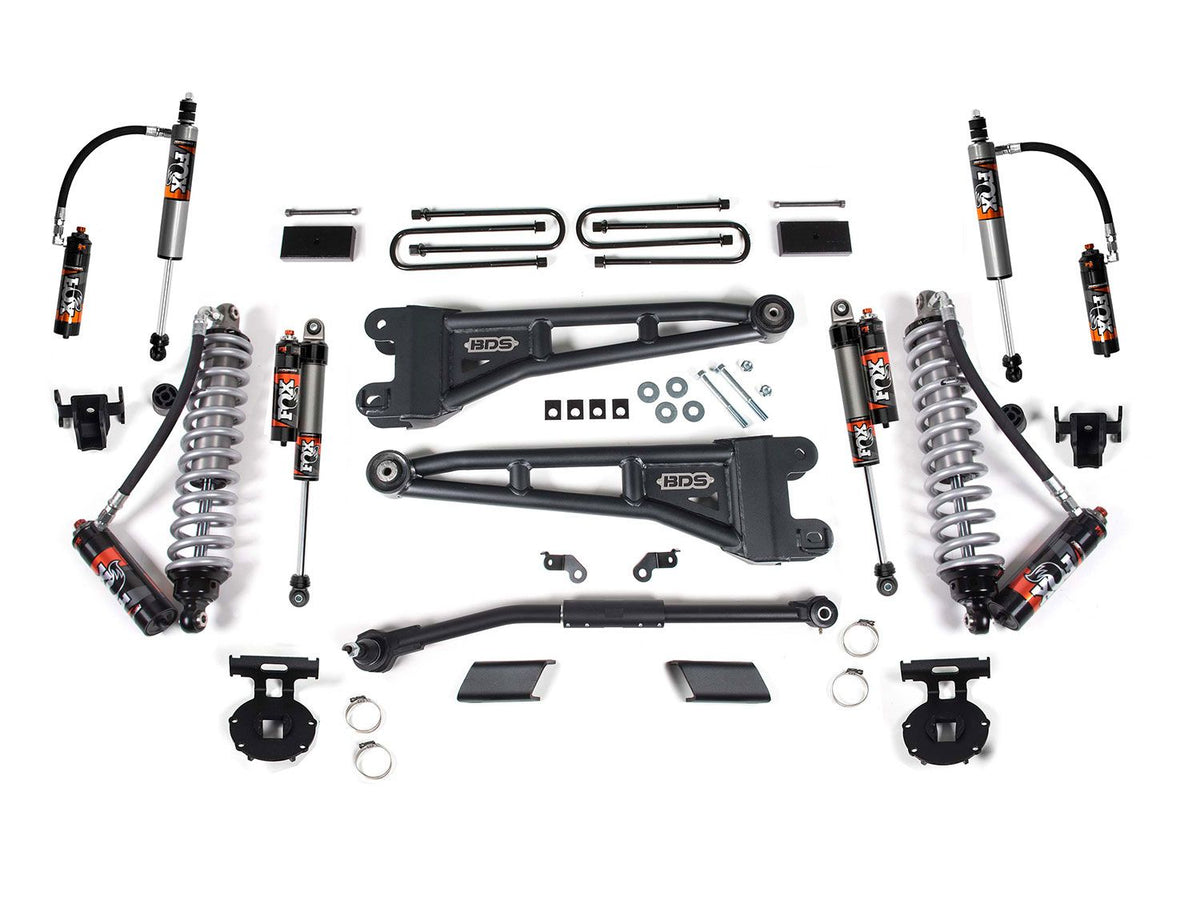

BDS 3 Inch Lift Kit W/ Radius Arm | FOX 2.5 Coil-Over Performance Elite | Ford F250/F350 Super Duty (23-24) 4WD
BDS Suspension
SKU: BDS2202FPE
In Stock — Ships within 1–3 business days
$16,500.00
+ shipping
Authorised Dealers
Fitment Guarantee
Australia Wide Delivery
Expert Installation Available
Ask An Expert
Can't find what you are looking for? For trade pricing or volume discounts or just need help finding the correct product, call our sales team.
CALL NOW 07 5500 0095
Experience the thrill of up to 35" tyres with this all-inclusive kit, featuring diesel-specific Pro-Ride coil springs, heavy duty radius arms, a 1-3/8 inch solid steel track bar for precise steering, sway bar relocation, brake line brackets, and precision tuned nitrogen. Upgrade your truck and unleash its true potential!
charged shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Easy, 100% Bolt-on installation
Pro-Ride dual rate coil springs ride smooth through any terrain
Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
Adjustable solid steel track bar designed to recenter the front axle
Fabricated steel blocks provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Est. Install Time : 5 hrs
Difficulty Level : Moderate
Specialty Tools Needed : 30mm Socket, Pitman Arm Puller
NOTE: For the OK by Zone Offroad and BDS Kits with 2.5" Remote Res shocks, please add 2 hours extra for all kits for fitment. It takes a little longer to mount the remote reservoirs compared to the standard shocks.
Recommended Tyres & Wheels
(Trimming may be required)
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace
Vehicles with radius arm mounted ride height sensors will require BDS123303.
Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.
Installation requires a torque wrench capable of 406 ft-lbs.
Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.
