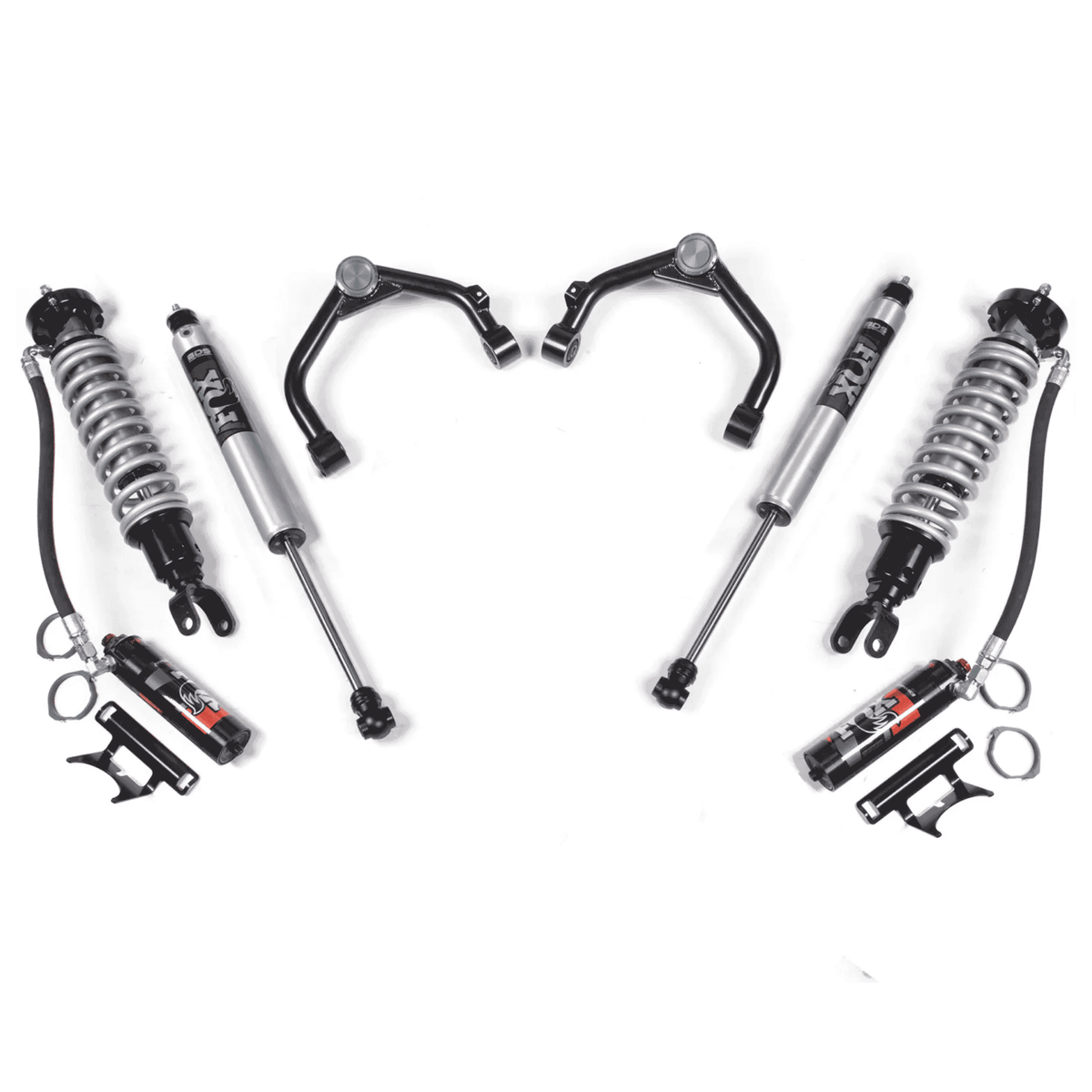

BDS 2 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ram 1500 (19-24) 4WD

BDS Suspension

SKU: BDS1664FPE

In Stock — Ships within 1–3 business days

$7,500.00 + shipping

Authorised Dealers

Fitment Guarantee

Australia Wide Delivery

Expert Installation Available

Ask An Expert

Can't find what you are looking for? For trade pricing or volume discounts or just need help finding the correct product, call our sales team.

CALL NOW 07 5500 0095

BDS 2inch Lift Fox 2.5 PE Suspension 2019 - 2024

Rev up your 2019-2024 Ram 1500 4WD truck with this 2-inch lift kit and unleash its style and performance potential. Featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension, this kit is designed to enhance your truck's stance, capability, and overall performance.

Get ready for clearance for up to 33" tyres and a smooth ride thanks to heavy duty tubular upper control arms and FOX 2.0 Performance shocks in the rear. Elevate your truck with this all-in-one kit and experience the ultimate off-road adventure!

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Rear Shock Option

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty

FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock

DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain

Performance UCAs increase strength and allow for more suspension travel

FOX 2.0 performance series IFP rear shocks included

Factory Protection Plus drivetrain warranty included

Easy, 100% Bolt on installation

Specifications

Front Lift Method : Coil-Over

Rear Lift Method : Stock

Shocks Included : Yes

Front Lift Height : 2"

Rear Lift Height : 0"

Est. Install Time : 3-4 hrs

Difficulty Level : Easy

Recommended Tyres & Wheels

(Trimming may be required)

33 x 12.5 with 20 x 9 and 4.5 in. Backspace

295 / 65 with 20 x 9 and 5 in. Backspace

Important Notes

Fits 4WD models only

Vehicles equipped with "Offroad or Rebel Package" will not achieve full 2" of lift, net ride height change will be around 1" above stock.

Will not fit vehicle equipped with factory Air Ride.

Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
