BDS Suspension

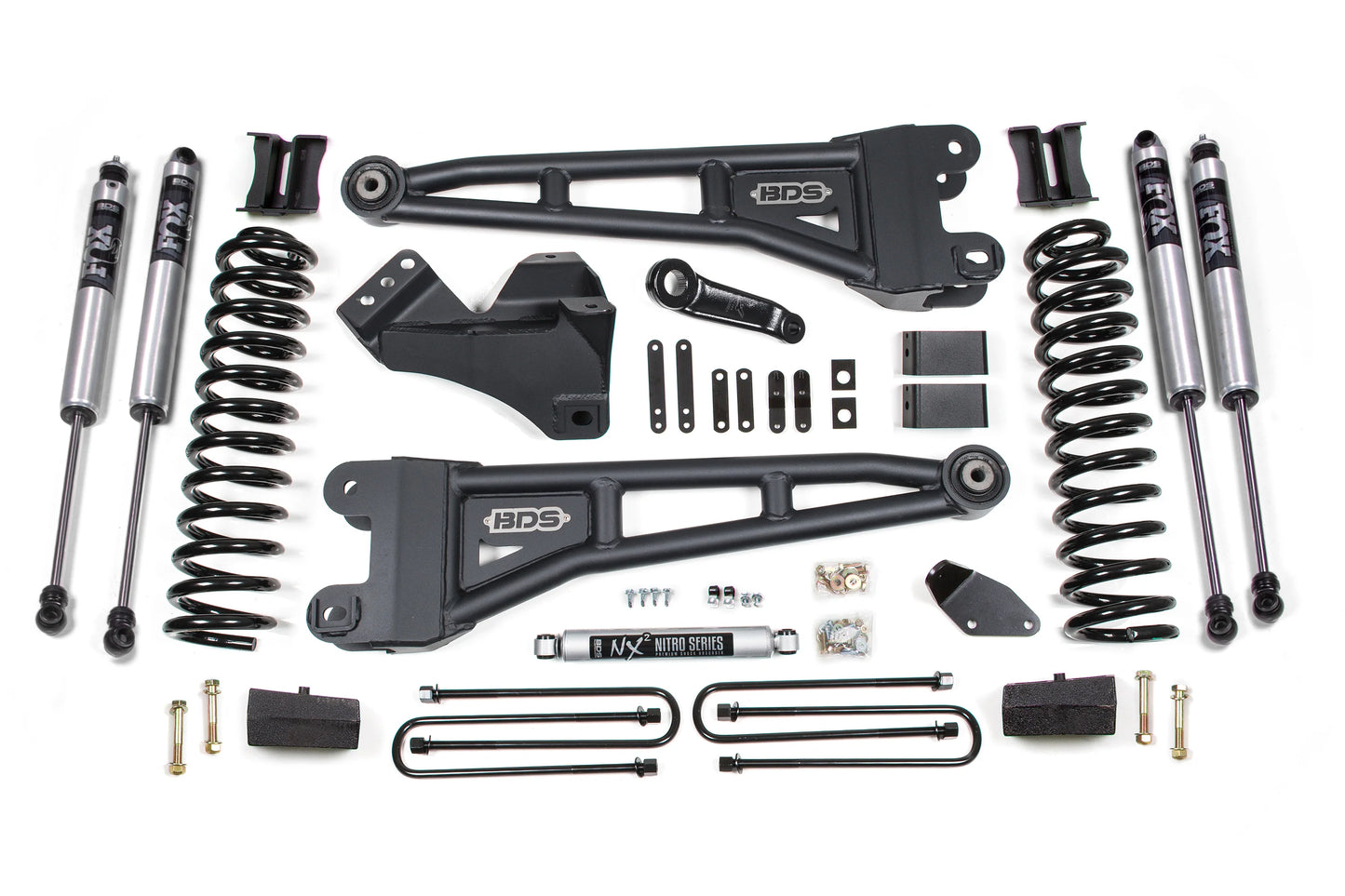

BDS 4 Inch Lift Kit W/ Radius Arm | Ford F250/F350 Super Duty (05-07) 4WD | Diesel

BDS 4 Inch Lift Kit W/ Radius Arm | Ford F250/F350 Super Duty (05-07) 4WD | Diesel

Regular price $5,799.00 AUD
Regular price Sale price $5,799.00 AUD
Sale Sold out
Tax included.

Improve the ride on your 2005-2007 Ford F250 and F350 Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.


HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

1x BDS013329 1999-2007 Ford F250/F350 Rear Box Kit w/o overload
1x BDS013431 2005-2007 Ford F250/F350 4" Radius Arm Front Box Kit
1x BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1x BDS033411 2005-2023 Ford F250/F350 Superduty 4" Coil Kit - Diesel
2x FOX98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2x FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
2x FOX98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1
1x BDS55380 2017-2023 Ford Super Duty - Dual Steering Stabilizer Mount Kit
1x BDS123202 Front Adjustable Track Bar | Ford F250 / F350 Super Duty (05-16) 4WD
